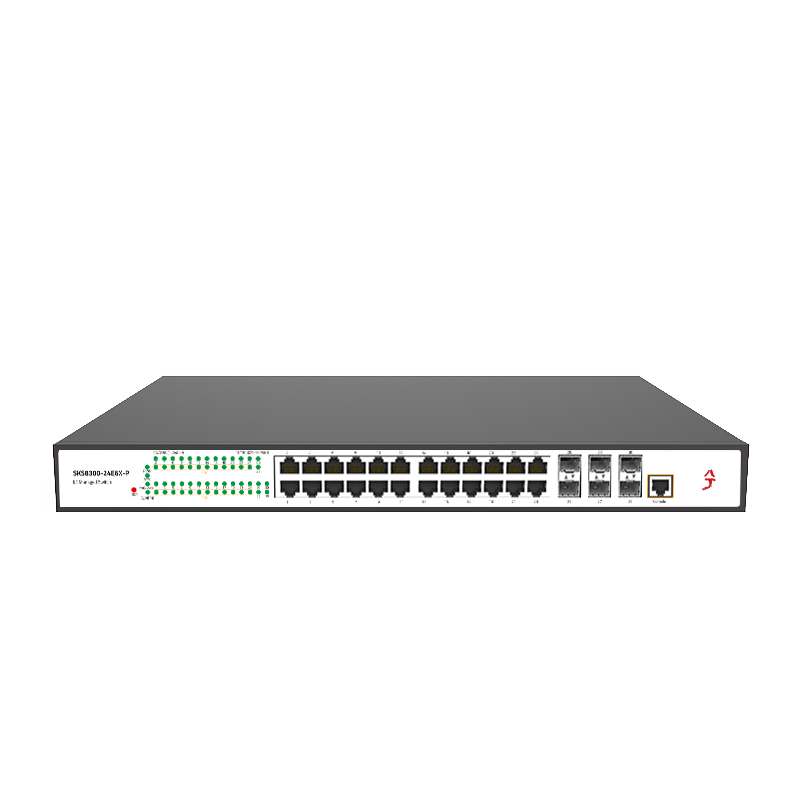

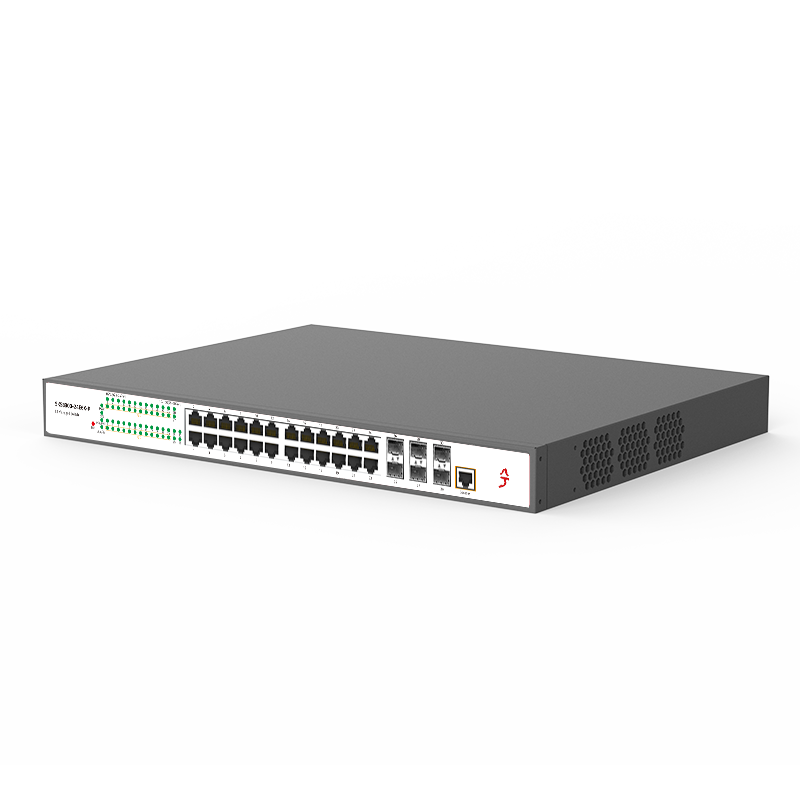

SKS8300-24E6X-P
30-Ports 2.5G L3 Managed PoE Switch
  • 24 x 2.5Gbps PoE Ports + 6 x 10Gbps SFP+ Ports.
  • IEEE 802.3at/af power supply protocols,PoE power supply 400W Single port max output 30W.
  • Adopts a high-performance, low-power network processor.
  • Supports line sleep capability for Green Ethernet, with the lowest power consumption of any device in its class in the industry.
  • Supports powerful QoS and ACL functions.
  • Supports IP+MAC+port binding and other security features.
  • Support service flow classification and message priority marking.
  • Supports static packet sampling and SFLOW function.
    • Download file
    Product Specification
    Input/Output Interface
    Power supply AC 100~240V
    Ports 24-Ports 2.5Gbps PoE RJ45 Ports
    6-Port 10Gbps (SFP+) Port、1-Port Console (With RJ-45)
    Performances
    Backplane Bandwidth 240Gbps
    Packet Forwarding Rate 160Mpps
    Flash memory 32M
    MAC Address Table 32K
    System memory 512M
    Forwarding Mode Store-and-forward
    Dimension 440(L) x 44(H) x 260(W)mm
    PoE Power 400W,single port ≤30W
    Layer 2 characteristics
    MAC Address Table Supports manual addition and deletion of MAC address table
    Support manual configuration of MAC address aging time
    Support to disable MAC address learning function on port
    Support port MAC address number control
    Support port MAC address filtering function
    VLAN Characteristics Supports 4K VLAN 802.1Q.
    Supports VLAN based on port, MAC and protocol.
    Supports QinQ
    Spanning Tree Supports STP/RSTP/MSTP
    Supports remote loop detection
    Ports Characteristics Supports bidirectional bandwidth control
    Supports static and LACP dynamic aggregation port aggregation
    Supports multi-port mirroring
    Support port storm suppression
    Supports 12K Jumbo ultra-long frame forwarding
    Safety features
    User Safety Supports Anti-ARP-spoofing spoofing protection.
    Supports Anti-ARP-flooding automatic suppression.
    Supports IP Source Guard to automatically create IP+MAC+Port+VLAN binding table.
    Supports Port Isolation to hardware isolate messages between ports.
    Supports MAC address binding to ports and port MAC address filtering.
    Supports IEEE 802.1x and AAA/Radius user authentication.
    Equipment Safety Supports control layer protection against various DOS and virus attacks against the CPU.
    Supports SSHv2 Secure Shell.
    Support SNMP v3 encryption management
    Supports Telnet login and password mechanism for Security IP.
    Supports the adoption of the maintenance of user-level protection to prevent
    unauthorised users from illegal intrusion
    Network Security Support ARP traffic detection based on per-user MAC address Supports ARP message suppression or user blocking based on ARP traffic detection.
    Supports one-key binding based on dynamic ARP table.
    Supports manual binding of IP addresses, VLAN IDs, MAC addresses and ports.
    Supports L2-L7 ACL flow filtering.
    Supports port broadcast/multicast message suppression and automatic shutdown of dangerous ports.
    Supports DHCP Option82 and PPPoE+ tagging to upload user physical location information.
    Business Characteristics
    ACL Supports standard and extended ACLs
    Supports Time Range based ACL policy.
    Provides flow classification and flow definition based on source/destination MAC address,
    VLAN, 802.1p, ToS, DiffServ, source/destination IP (IPv4/IPv6) address, TCP/UDP port number, protocol type and other IP header information.
    Supports 80-byte IP header filtering from L2 to L7.
    QoS Supports rate limiting for incoming and outgoing messages on ports or custom streams.
    Supports message mirroring and message redirection for ports or custom streams.
    Supports priority marking for ports or custom streams, and provides Remark capability for 802.1P and DSCP priorities.
    Supports advanced queue scheduling based on ports or custom streams,
    supports 8 priority queues per port/stream, and provides various queue scheduling algorithms such as SP, WRR, SP+WRR, etc.
    Multicast Support IGMPv1/v2/v3 Snooping
    Supports IGMP Filter multicast filtering
    Supports MVR multicast VLAN registration and inter-VLAN multicast replication.
    Support IGMP Fast leave multicast groups
    Support IGMP Proxy
    Layer 3 characteristics
    ARP Supports ARP table entry aging
    Support ARP Proxy
    Supports IP address conflict identification between downlinked users
    IPv4 Supports static IPv4 routes
    Support Ping, Traceroute,
    Support VRRP
    Support OSPF, RIP, PIM, BGP and other protocols
    IPv6 Supports static IPv6 routes
    Support for ICMPv6
    Support Neighbor Discover
    Support RIPng, OSPFv3 and other protocols
    Reliability Property
    Loop protections Supports Enhanced Ethernet Loopback Protocol
    Supports Loopback-detection port loopback detection
    Link protection Supports FlexLink link backup
    Support RSTP/MSTP link healing hardware acceleration capability
    Support LACP dynamic link aggregation
    Maintenance features
    Network maintenance Supports Telnet-based real-time port traffic, utilisation and send/receive packet statistics
    Supports LLDP neighbor discovery protocol
    Supports Ethernet OAM 802.3ah EFM and 802.1ag CFM.
    Supports RMON (Remote Monitoring) 1,2,3,9 MIB groups
    Support RFC3176 sFlow traffic analysis, you can achieve the protocol or address-based traffic monitoring and statistics
    Supports data logging and RFC 3164 BSD syslog Protocol.
    Supports Ping and Traceroute
    Equipment management Supports Command Line Interface (CLI), Console port, Telnet, SSH and WEB configuration management
    Support virtual cable detection (VCT)
    Support SNMP V1/V2c/V3 management
    Support SNTP protocol
    Supports user hierarchical permissions
    Support user RADIUS remote authentication
    Support user Tacacs+ remote authentication
