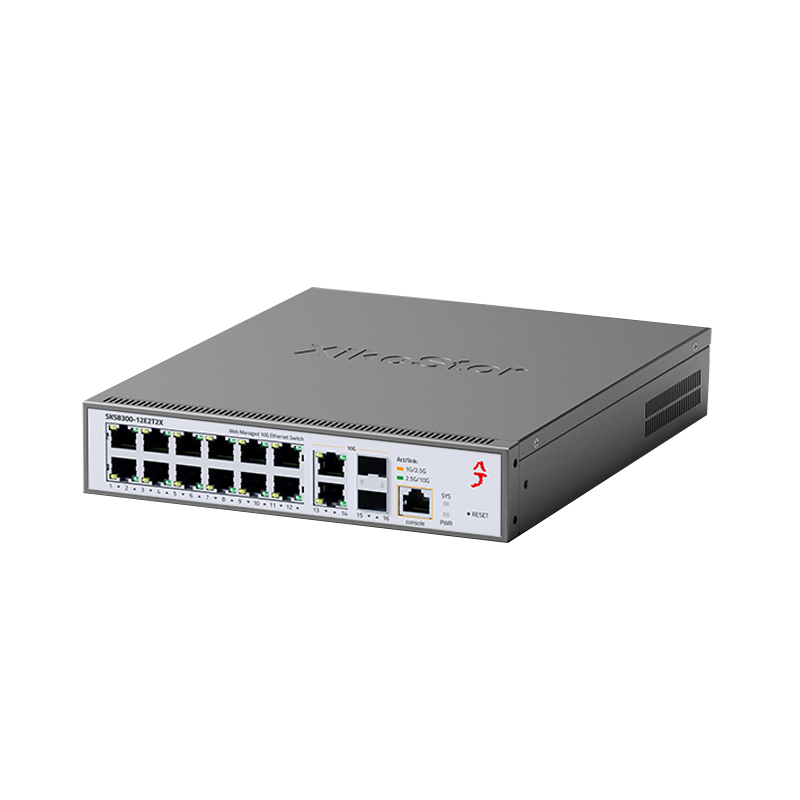

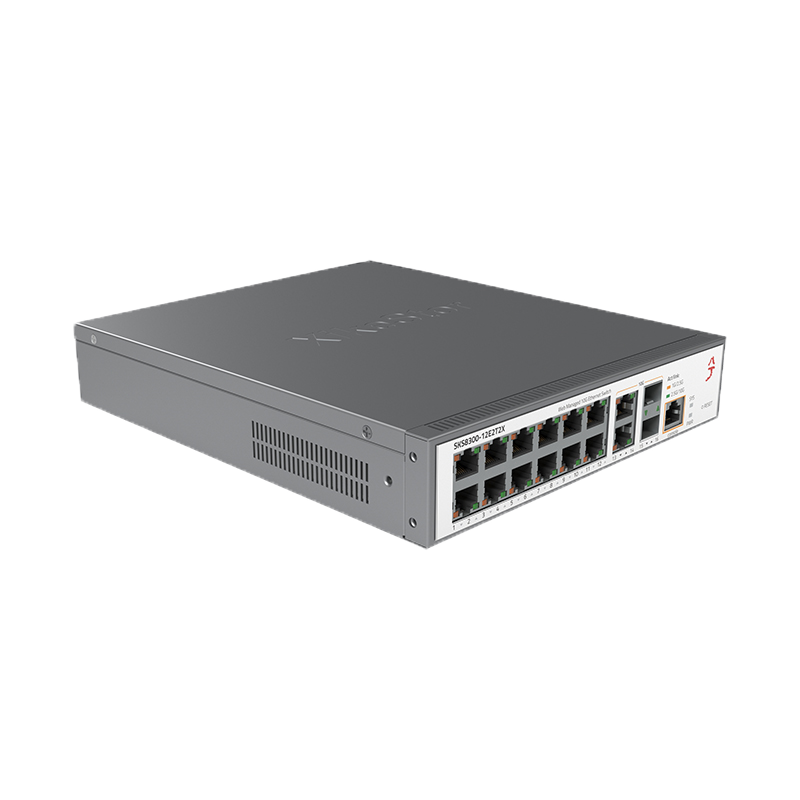

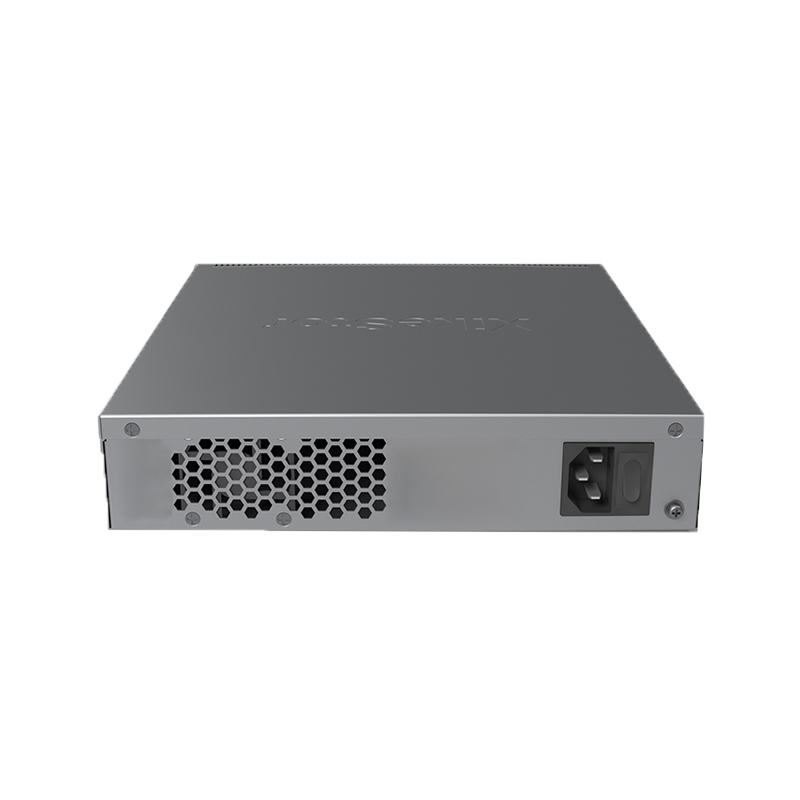

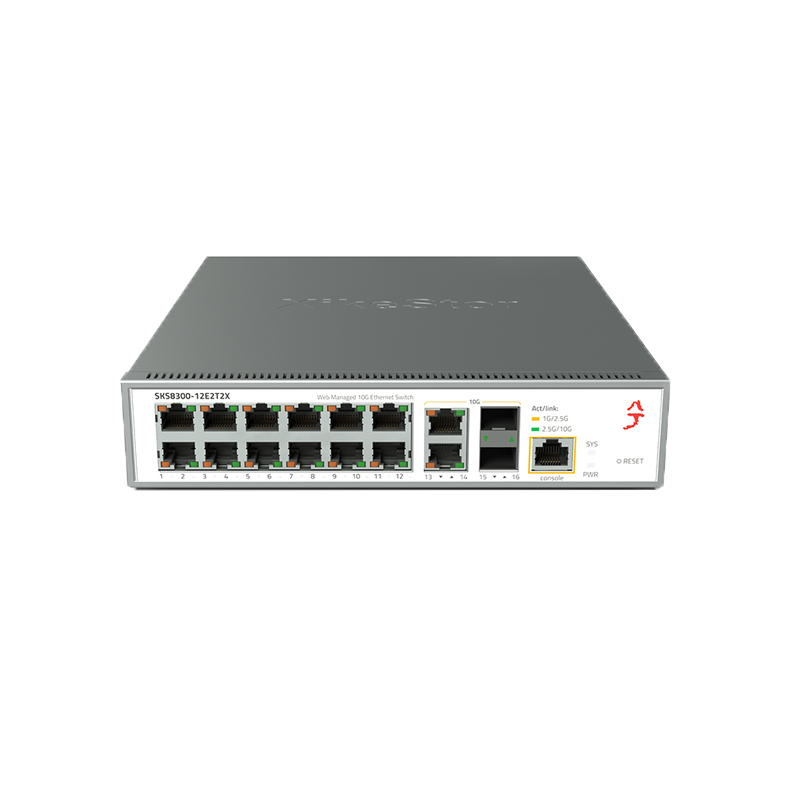

SKS8300-12E2T2X
16-Ports 2.5G/10G L3 Managed Switch
| Product Specification | |
| Input/Output Interface | |
| Power supply | AC 100~240V |
| Ports | 12-Ports 2.5Gbps RJ45, 2-Ports 10Gbps RJ45,2-Ports 10Gbps SFP+,1-Port Console (With RJ-45) |
| Performances | |
| Backplane Bandwidth | 140Gbps |
| Packet Forwarding Rate | 208Mpps |
| Flash memory | 32M |
| MAC Address Table | 16K |
| System memory | 512M |
| Forwarding Mode | Store-and-forward |
| Dimension | 250(L) x 44(H) x 210(W)mm |
| Power Wasted | ≤30W |
| Layer 2 characteristics | |
| MAC Address Table |
Support manual add/remove MAC address table Supports port to disable MAC address learning function Support port MAC address number control Support port MAC address filtering function |
| VLAN Characteristics | Supports 4K VLAN 802.1Q. Supports VLAN based on port, MAC and protocol. Support Access/Trunk/Hybrid Supports QinQ |
| Spanning Tree | Supports STP/RSTP/MSTP Supports remote loop detection |
| Ports Characteristics | Supports bidirectional bandwidth control Supports static and LACP dynamic aggregation port aggregation Supports multi-port mirroring Support port storm suppression Supports 12K Jumbo ultra-long frame forwarding |
| Safety features | |
| User Safety | Supports Anti-ARP-spoofing spoofing protection. Supports Anti-ARP-flooding automatic suppression. Supports IP Source Guard to automatically create IP+MAC+Port+VLAN binding table. Supports Port Isolation to hardware isolate messages between ports. Supports MAC address binding to ports and port MAC address filtering. Supports IEEE 802.1x and AAA/Radius user authentication. |
| Equipment Safety | Support SSHv2 Secure Shell Support SNMP v3 encryption management Supports Telnet login and password mechanism for Security IP. |
| Network Security | Supports one-key binding based on dynamic ARP table
Supports manual binding of IP addresses, VLAN IDs, MAC addresses and ports. Supports L2-L7 ACL flow filtering. Supports port broadcast/multicast message suppression and automatic shutdown of dangerous ports. Supports DHCP Option82 and PoE+ tagging to upload user physical location information. |
| Business Characteristics | |
| ACL | Supports standard and extended ACLs Supports Time Range based ACL policy. Provides flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP (IPv4/IPv6) address, TCP/UDP port number, protocol type and other IP header information. Supports 80-byte IP header filtering from L2 to L7. |
| QoS | Supports traffic classification based on COS/DSCP Supports rate limiting for incoming and outgoing messages on ports or custom streams. Supports message mirroring and message redirection for ports or custom streams. Supports priority marking of ports or custom streams, and provides Remark capability for 802.1P and DSCP priorities. Supports advanced queue scheduling based on ports or custom streams, supports 8 priority queues per port/stream, and provides various queue scheduling algorithms such as SP, WRR, SP+WRR, etc. Supports traffic supervision based on VLAN direction (in/out). Supports traffic supervision based on the direction of aggregated flows (in/out). Supports queue-based traffic shaping Support port-based traffic shaping Supports SP strict priority scheduling Supports WRR (weighted round robin) scheduling Supports SP + WRR hybrid scheduling Supports IPv4-v6 QoS (qc) |
| Multicast | Support IGMPv1/v2/v3 Snooping Supports IGMP Filter multicast filtering Support IGMP Fast leave multicast groups Support IGMP Proxy |
| Layer 3 characteristics | |
| ARP | Supports ARP table entry aging Support ARP Proxy |
| IPv4 | Supports static IPv4 routes Support Ping, Traceroute, Support VRRP Support OSPF, RIP, PIM, BGP and other protocols Support ICMP redirect、ICMP unreachables |
| IPv6 | Supports static IPv6 routes Support for ICMPv6 Support Neighbor Discover |
| Reliability Property | |
| Loop protections | Supports Enhanced Ethernet Loopback Protocol Supports Loopback-detection port loopback detection |
| Link protection | Supports FlexLink link backup Support RSTP/MSTP link healing hardware acceleration capability Support LACP dynamic link aggregation |
| Maintenance features | |
| Network maintenance | Supports Telnet-based real-time port traffic, utilisation and send/receive packet statistics Supports LLDP neighbor discovery protocol Supports Ethernet OAM 802.3ah EFM and 802.1ag CFM. Supports data logging and RFC 3164 BSD syslog Protocol. Supports Ping and Traceroute |
| Equipment management | Supports Command Line Interface (CLI), Console port, Telnet, SSH and WEB
configuration management Support virtual cable detection (VCT) Support SNMP V1/V2c/V3 management Support SNTP protocol Supports user hierarchical permissions Support user RADIUS remote authentication Support user Tacacs+ remote authentication |
