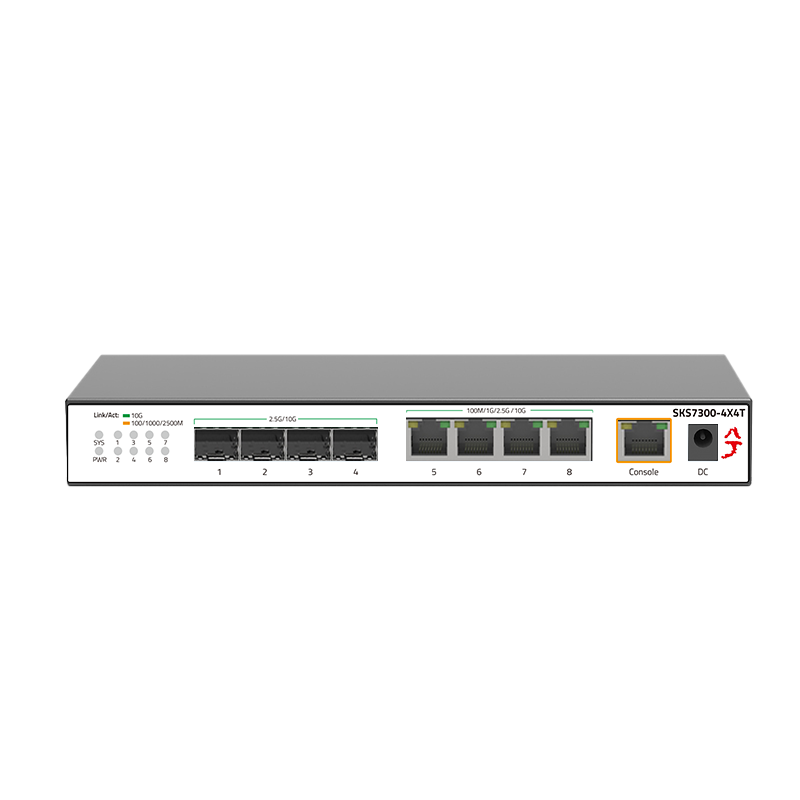

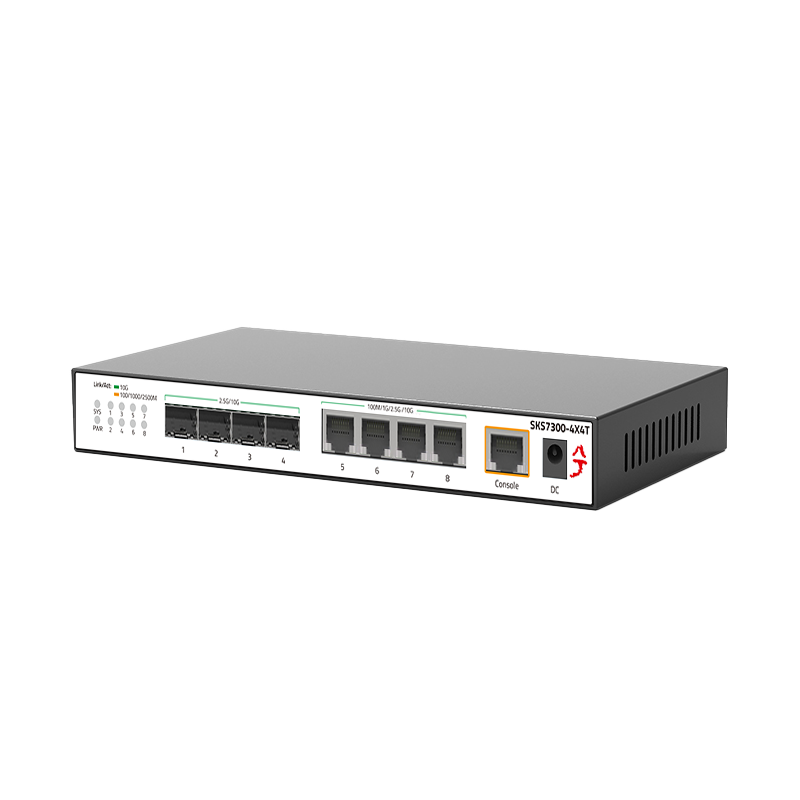

SKS7300-4X4T
8-Ports 10G L2 Managed Switch
  • Layer 2 Managed Switch
  • 4*10G RJ45 interfaces
  • 4*10G SFP+ interfaces
  • Full metal body
  • Silent fan cooling
  • Supports VLAN segmentation and port aggregation
  • Support LACP function
  • Sophisticated QoS Configuration Policies
  • Product Specification
    Input/Output Interface
    Power supply Input: DC12V/3A
    Ethernet 4-Ports 10GBase-T (RJ45) Port
    4-Port 10GBase-R (SFP+) Port、1-Port Console (With RJ-45)
    Performances
    Backplane Bandwidth 160Gbps
    Packet Forwarding Rate 119.04Mpps
    Flash memory 128M
    MAC Address Table 32K
    System memory 2Gb
    Forwarding Mode Store-and-forward
    Dimension 220(L) x 44(H) x 145(W)mm
    Network parameter
    Network Protocols IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet)
    IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet)
    IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE 802.3x (Flow Control)
    Industry Standards EMS: EN61000-4-2 (ESD)、EN61000-4-5(Surge)
    Network Media 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)
    100Base-TX : Cat5 or above UTP/STP(≤100m)
    1000Base-TX : Cat5 or above UTP/STP(≤100m)
    Environmental Standard
    Working Environment Working temperature: -10~50°C
    Storage temperature: -40~70°C
    Operating humidity: 10%~90%, non-condensing
    Storage humidity: 5%~95%, non-condensing
    Characterization
    L2 Managed Port Management /MAC Management/MVR Multicast Management/Loop Protection
    LANs /Multicast Multicast Management/UDLD Management
    Convergence Groups/Spanning Tree/Auto-Voip
    System Management Basic Management/DNS/ISDP/Device Panel/SNMP/Timing Plan Management
    Built-in Services /LLDP
    VLAN 4K VLAN count/802.1q Port based VLANs /Voice VLAN Configuration/Port VLANs
    Protocol VLANs/GARP Switch/802.1Q Double Tagging
    Convergence group IEEE 802.3ad and LACP - 12 Aggregation Groups
    (up to 8 physical ports in 1 aggregation group)
    QoS Managed Port 8 Queues/Interface bandwidth QoS/Rate limiting (ingress/egress)/Cos Configuration
    DoS Attack Configuration/Port IP Security Management
    Security Managed System Access Management/Port Access Security/ACL/Session Attributes/Port Flow Control
    DoS Attack Configuration/Port IP Security Management
    Inspection Managed Ports/Log Management/Mirror Management/sFlow Management
    Safeguard Save Configuration/Updating device files/Rebooting the device/IMG file management
    Download Configuration File/Diagnostic Tools
    Standards Compliance
    •  IEEE 802.3x flow control and back pressure     •  IEEE 802.1D Spanning Tree Protocol
    •  EEE 802.1w Rapid Spanning Tree Protocol     •  IEEE 802.1Q VLAN tagging
    •  RFC 768 UDP     •  RFC 791 IP     •  RFC 792 ICMP     •  RFC 2068 HTTP     •  RFC 1112 IGMP v1     •  RFC 2236 IGMP v2
    *The data and product performance quoted in the above introduction are the performance of the products under specific experimental environments of specific equipment, which may vary based on the actual environment or equipment on site, and the technical comparisons mentioned are all explanations of scientific principles and do not involve other purposes.
    The third-party product information mentioned above, such as flagship models, carrier bandwidth, etc., are all statistical information from mainstream manufacturers as of the official release date of the product. There may be more than one version of the same model, the product pictures and APP/software interface in the above pages are for illustration only, the physical product (including but not limited to appearance, colour) and APP/software interface (including but not limited to UI, illustrations) may be slightly different, please refer to the physical object.
    Due to real-time changes in product versions, batches, production and supply factors, in order to provide accurate product information, functional parameters and appearance details as much as possible, XikeStor may adjust the content of the above pages in real time, such as text expressions and picture effects, in order to be consistent with the actual product. Adjustments may be made without prior notice.
    Due to the measurement environment, measurement methods and other factors, product dimensions, parameters and other information may be subject to certain scientific errors.
