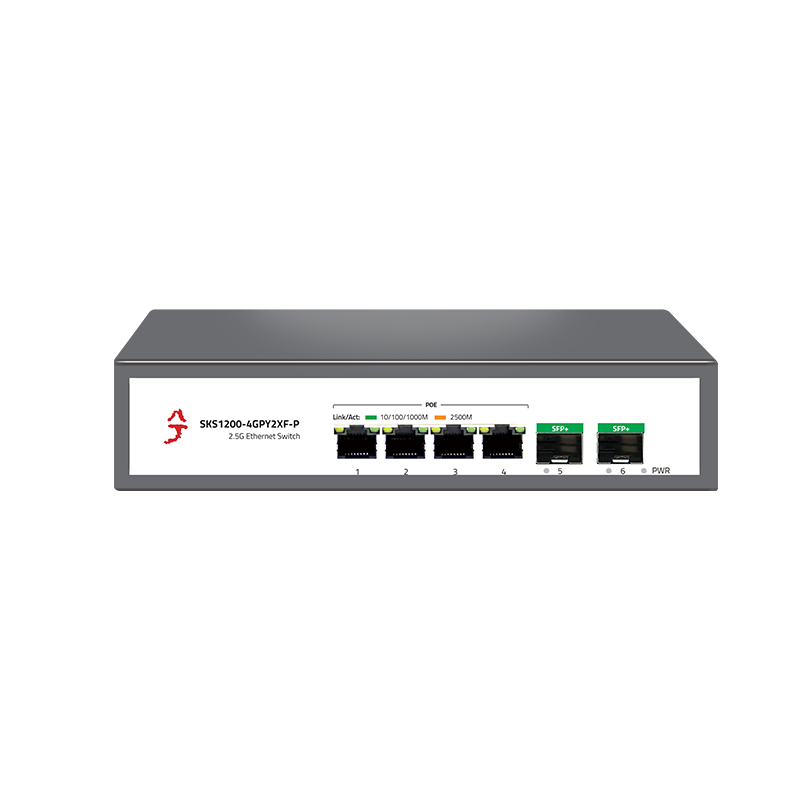

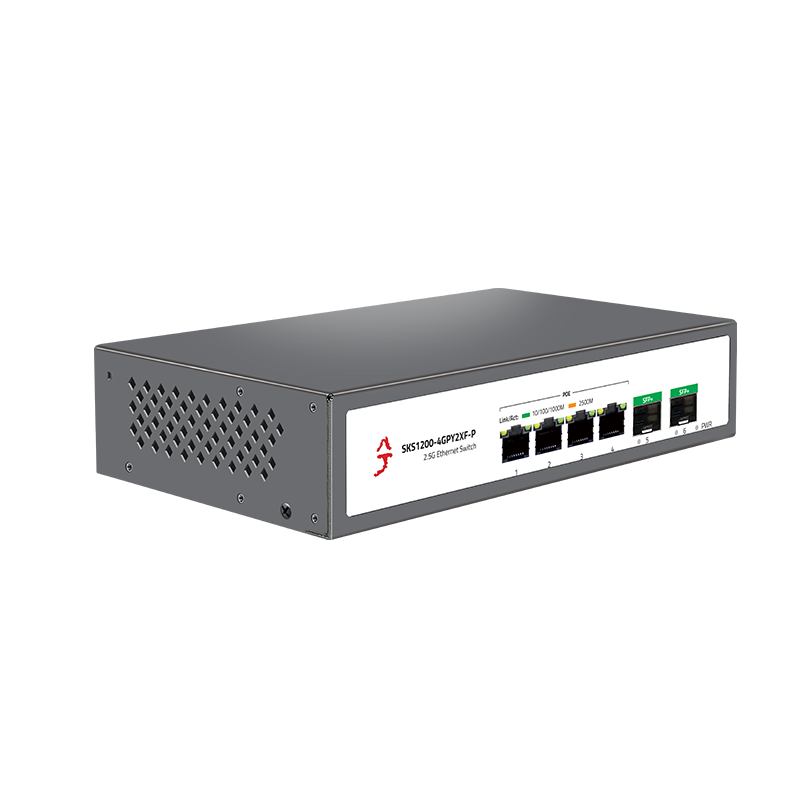

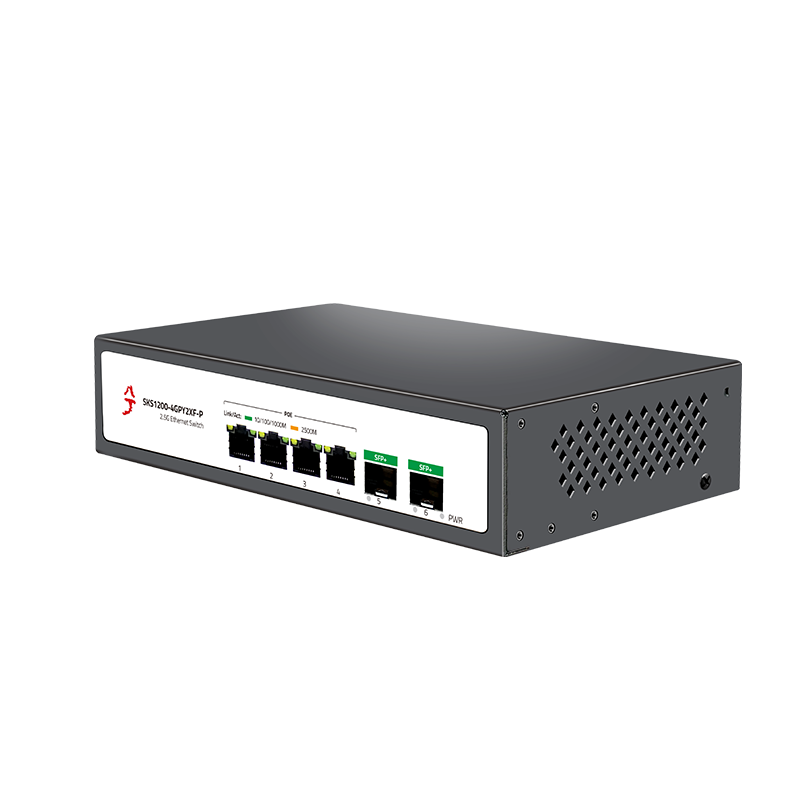

SKS1200-4GPY2XF-P
6-Ports 2.5G/10G Unmanaged PoE+ Switch
The product provides 4 2.5G POE+ ports and 2 10Gb SFP+ optical ports, connecting to all kinds of 2.5G devices to enjoy 2.5G high-speed transmission directly. It adopts store-and-forward mechanism and integrates high-capacity internal cache to reduce the delay of data forwarding.
  • 4x2.5G POE power ports, meet 802.3af/at standard,maximum power 75W.
  • 2x10G SFP+ optical ports.
    • Download file
    Product Specification
    Input/Output Interface

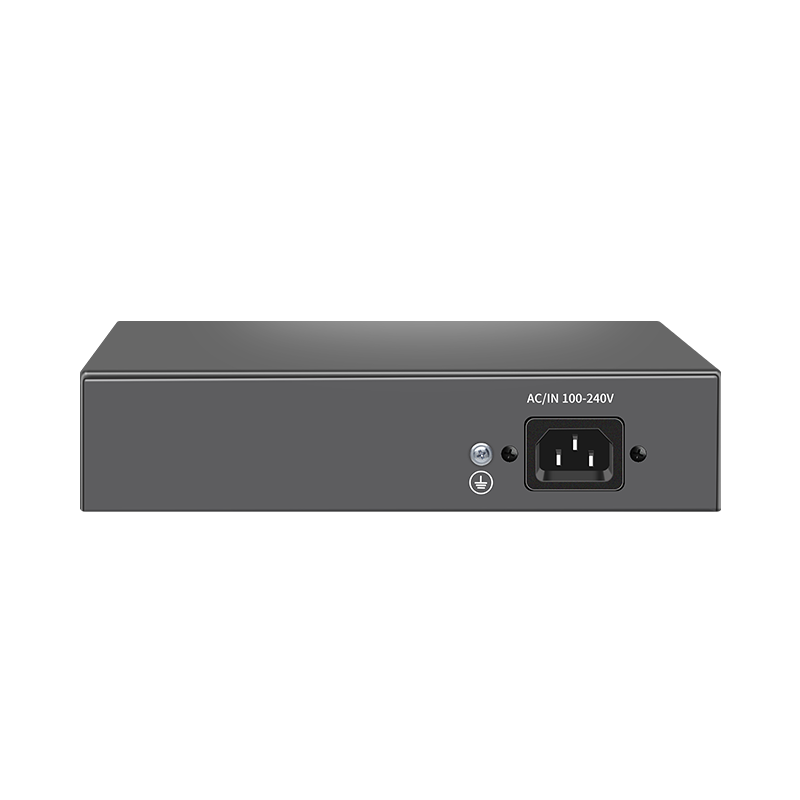

    Power supply AC 110V-240V,47-63HZ
    Ethernet
    4*100/1000/2500M RJ45 POE port
    2*10G SFP+ optical port
    Performances
    Backplane Bandwidth 60Gbps
    Packet Forwarding Rate 44.64Mpps
    Packet Cache 8Mbit
    MAC Address Table 4K
    Forwarding Mode Store-and-forward
    Network parameter
    Network Protocols IEEE802.3,IEEE802.3u,IEEE802.3x,
    IEEE802.3ab, IEEE802.3bz
    Signal distance ≤100M
    Network Media 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)
    100Base-TX : Cat5 or above UTP/STP(≤100m)
    1000Base-TX : Cat5 or above UTP/STP(≤100m)
    Port function Power Priority Mechanism, Fast and Forward, MAC Auto Learn and Aging
    IEEE802.3X full-duplex flow control with Backpressure half-duplex flow control
    Environmental Standard
    Working Environment Working temperature: -10~50°C
    Storage temperature: -40~70°C
    Operating humidity: 10%~90%, non-condensing
    Storage humidity: 5%~95%, non-condensing
    PoE Power Performance
    Connectivity standards IEEE 802.3af/at
    Output Power Single port output ≤30W
    MAX:75W
    Output voltage DC52V±5%
    Transmission line 1/2+, 3/6- wire pairs
    Supply medium 10/100/1000BASE-TX: Category 6 and above unshielded twisted-pair cable
    Physical specifications
    Sizes 200(L)×118(W)×44(H) mm
    Vibration tolerance 10-55Hz, 49.0m/s2 (5G), 3-minute cycle, 60 minutes in each X, Y and Z axes.
    Impact resistance 196.1m/s2 (20G), 11ms, once for each X, Y and Z axis.
